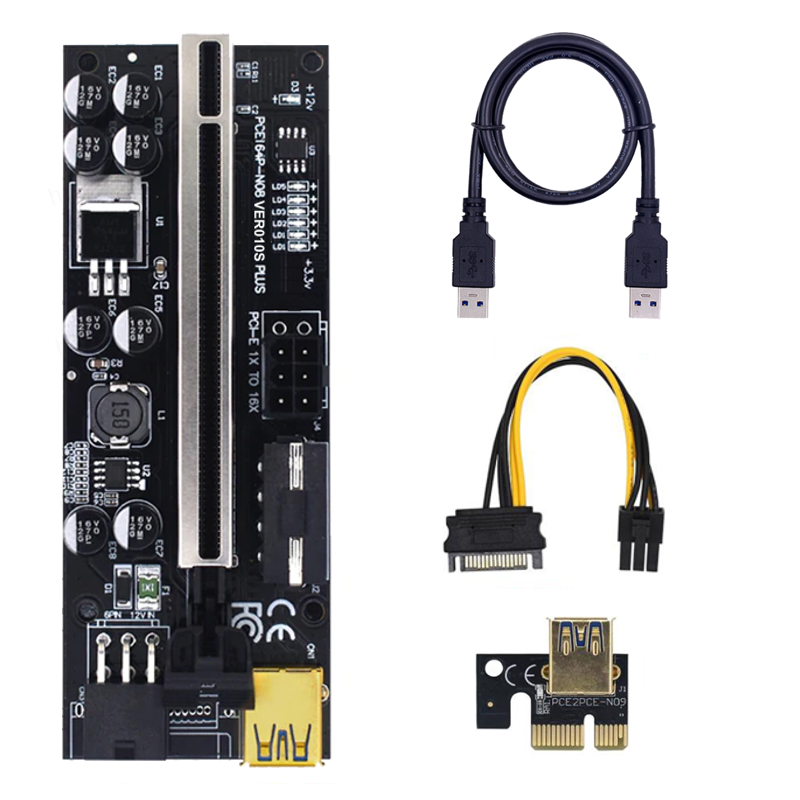

PCIe Riser Card - VER010S PLUS - 12V - 2 x 6PIN + 4PIN, 8x Solid Caps, 9x LED

Premium PCIe USB Riser Card VERSION 010S PLUS

POWER INPUT:

2 x 6Pin PCIE Power Connectors

1 x 4Pin Molex Power connector

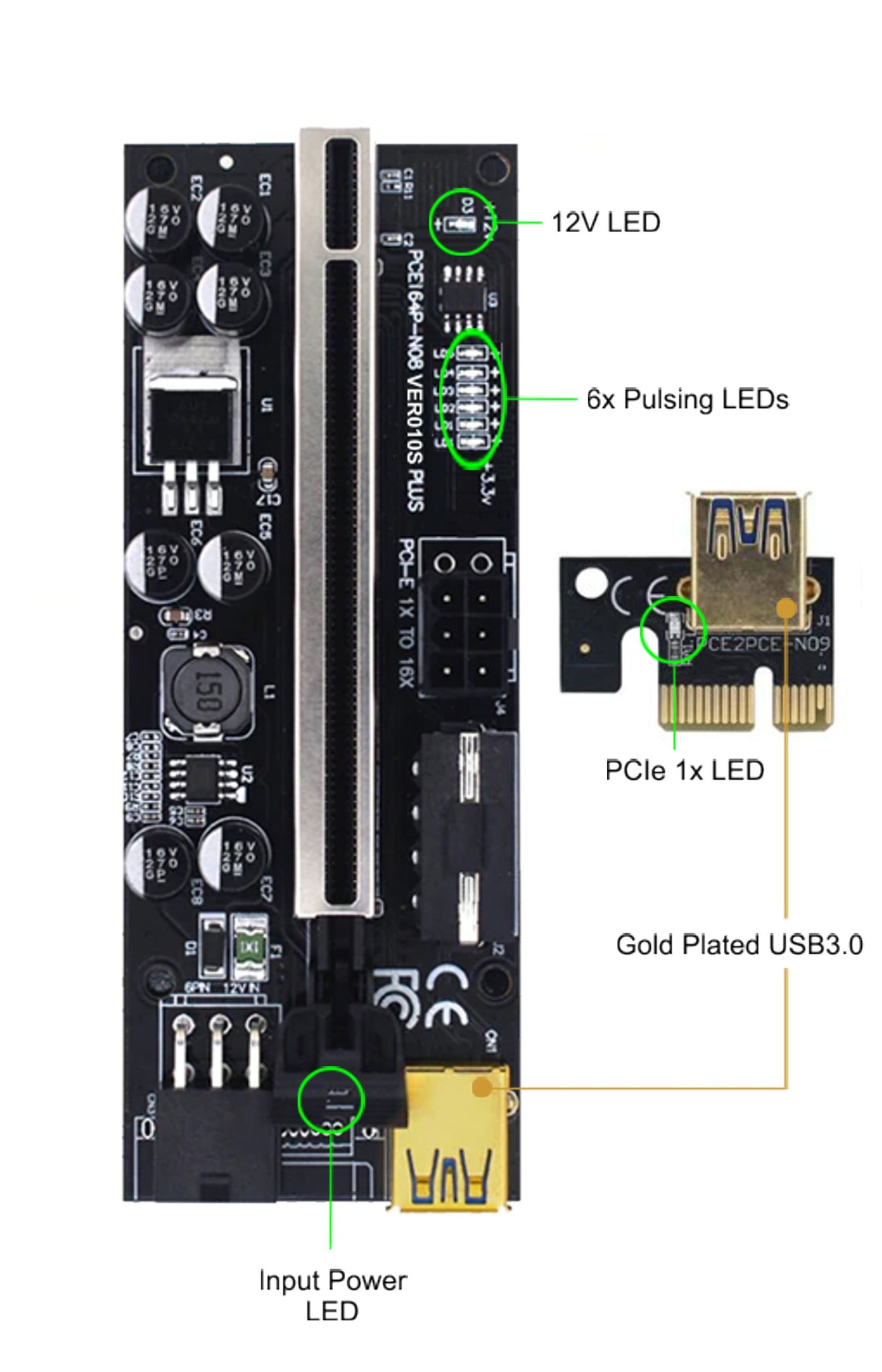

EZ DEBUG LED LIGHTS:

6 x  Pulsing GPU power delivery LEDs

1x Riser input power indicator LED

1x 12V stability power indicator LED

1x PCIe 1x board connectivity indicator LED

FEATURES

• Gold Plated USB Headers
• 8x FP solid capacitors
• Metal PCIE slot retention bracket
• Butterfly GPU retention clip
• SS34 High Power Schottky Rectifier
• PTC Re-settable Polly Fuse (100A max rated)

• 150 μH Shielded power inductor

• 270μF 16VDC Capacitors
• LM1084 LDO Voltage Regulator
• PCE2PCE - NO9 - PCIE1x to USB adapter
• USB Cable Length: approx. 60cm
• SATA 15pin Male to 6pin power cable
• Compatible with 1x, 4x, 8x, 16x PCI-E slot on the motherboard
• No driver needed
• 12V input voltage
