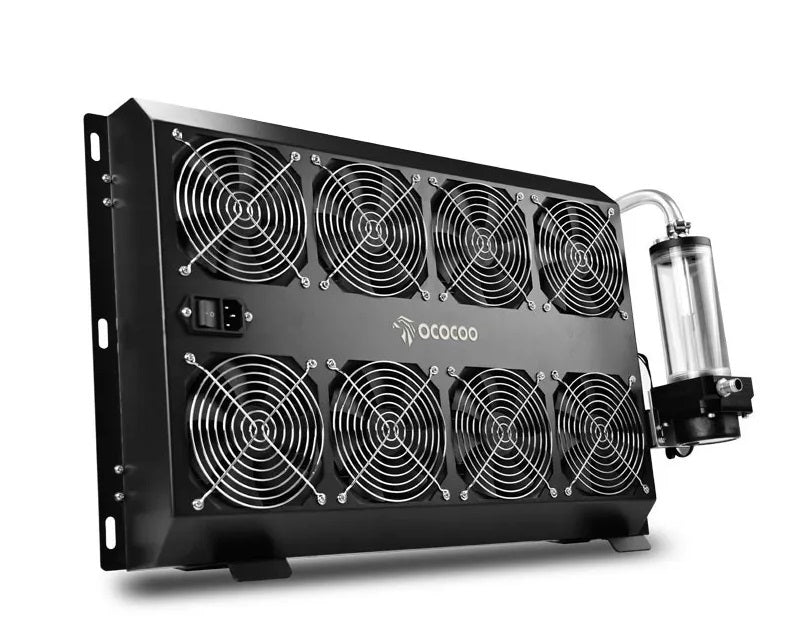

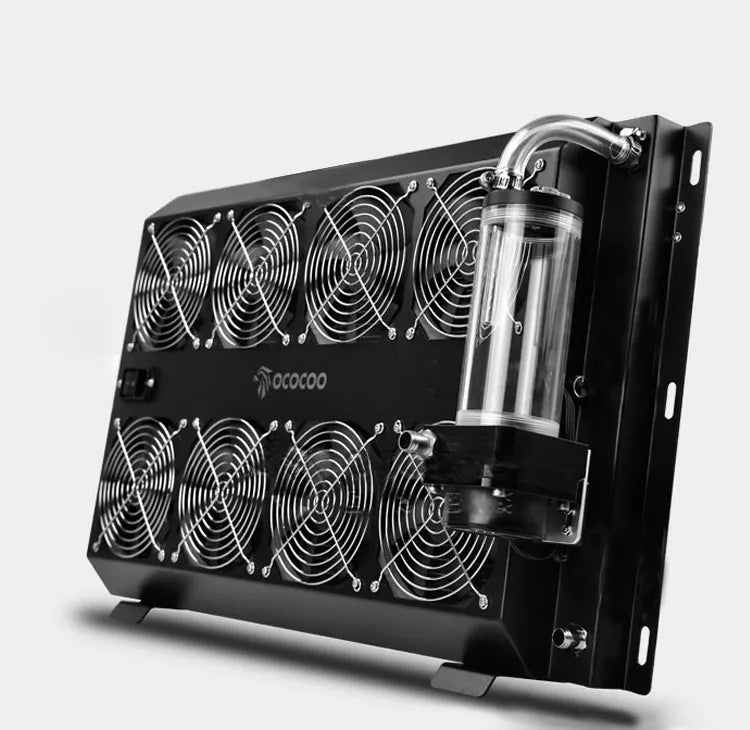

OCOCOO BC5 Water Cooling Radiator Kit

BC5 external water-cooled integrated radiator supports 4000W high-power heat dissipation, with PWM fan, high-lift, 1300L/H large flow, high-temperature resistant P90D water pump, suitable for various water-cooled heat dissipation systems.



Product Parameters:
Name: BC5 external water cooled integrated radiator
Maximum power: 4000W
Pump parameters: 4500RMP 1300L/H
Fan speed: 2200 RPM
Cold row size: 592mm*243mm*375mm (length * base width * height)
Cold discharging material: Aluminum
Color: Black
Interface type: G1/4 thread

Pump Parameters:
Maximum Flow: 1300L/H
Maximum Head: 5M
Operating Current: 1.8A
Speed Measurement Interface: Small 4P interface
Working Noise: ≤25DB
Input Voltage: DC12V
Weight: About 8.20KG (including packaging)
Operating Temperature: -10~60℃
Speed Control type: Supports PWM speed control
Circuit Design: Three-phase brushless DC circuit, MCU control



Kit Includes:

1x OCOCOO BC5 External Water Cooling Radiator (592x243x358mm)
8x 2200RPM 120mm PWM controlled Fans

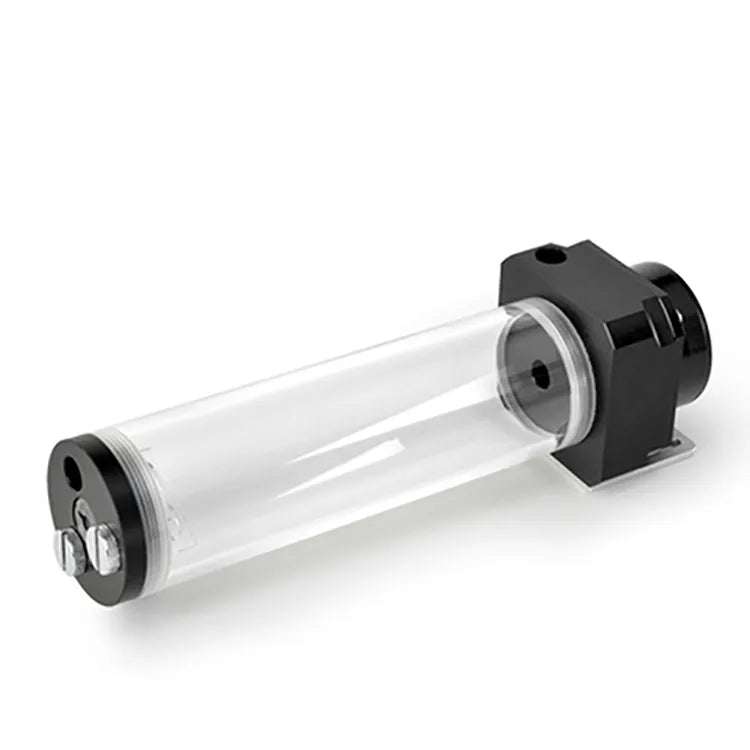

1x SC-P90 Water Pump & Reservoir (18w, 4500RMP, 1300L/H)
1x Water filling bottle
1x Water pipe x 3m (16mm OD)
5x G1/4" Fittings
4x Hose Clamps
2x Floor standing feet
