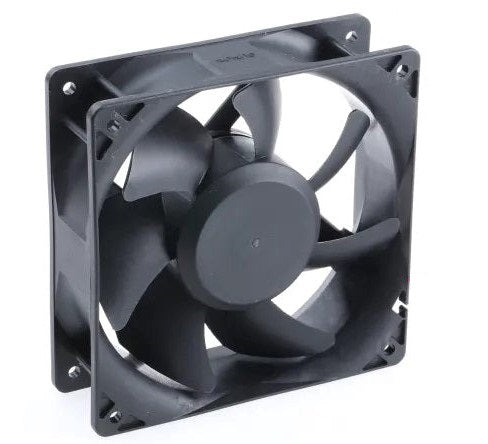

KY12038B12B-9 12V 3.14A 12CM 6000RPM Fan

Replacement Fan for Bitmain Antminer range: L3, L7, D7, S7, S9, T17, S17, T19, S19...

Model: KY12038B12B-9

Speed: 6000 RPM

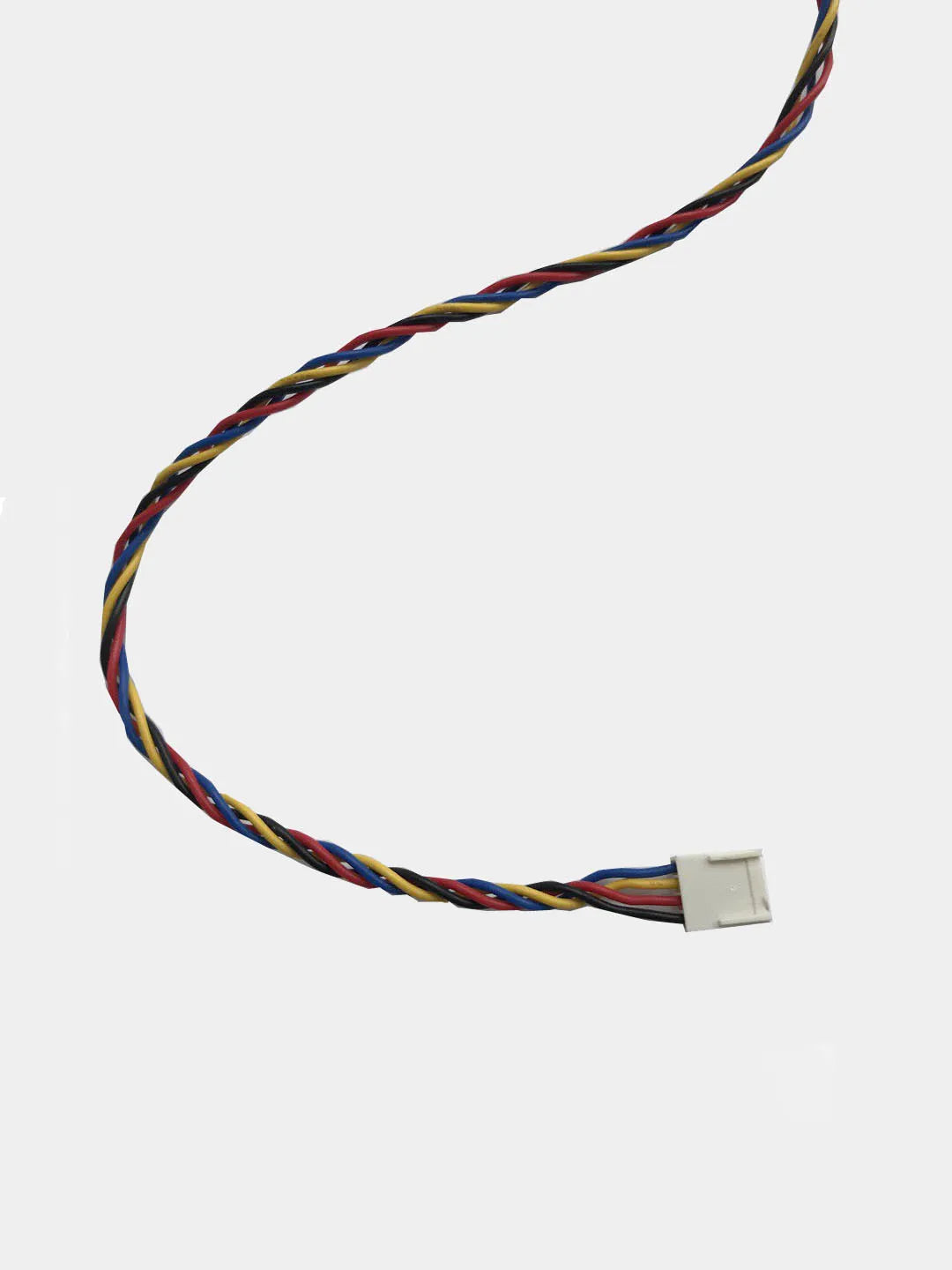

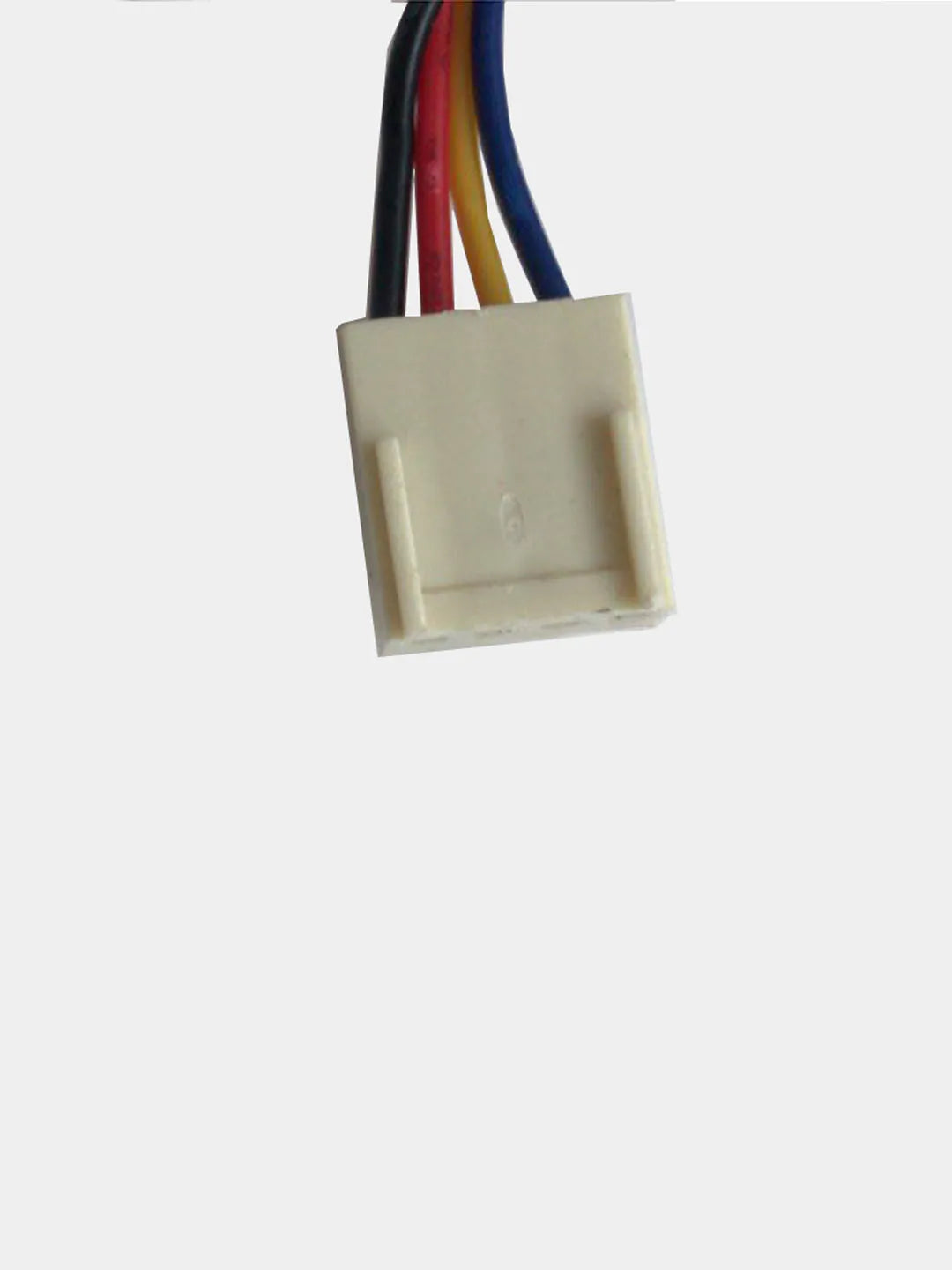

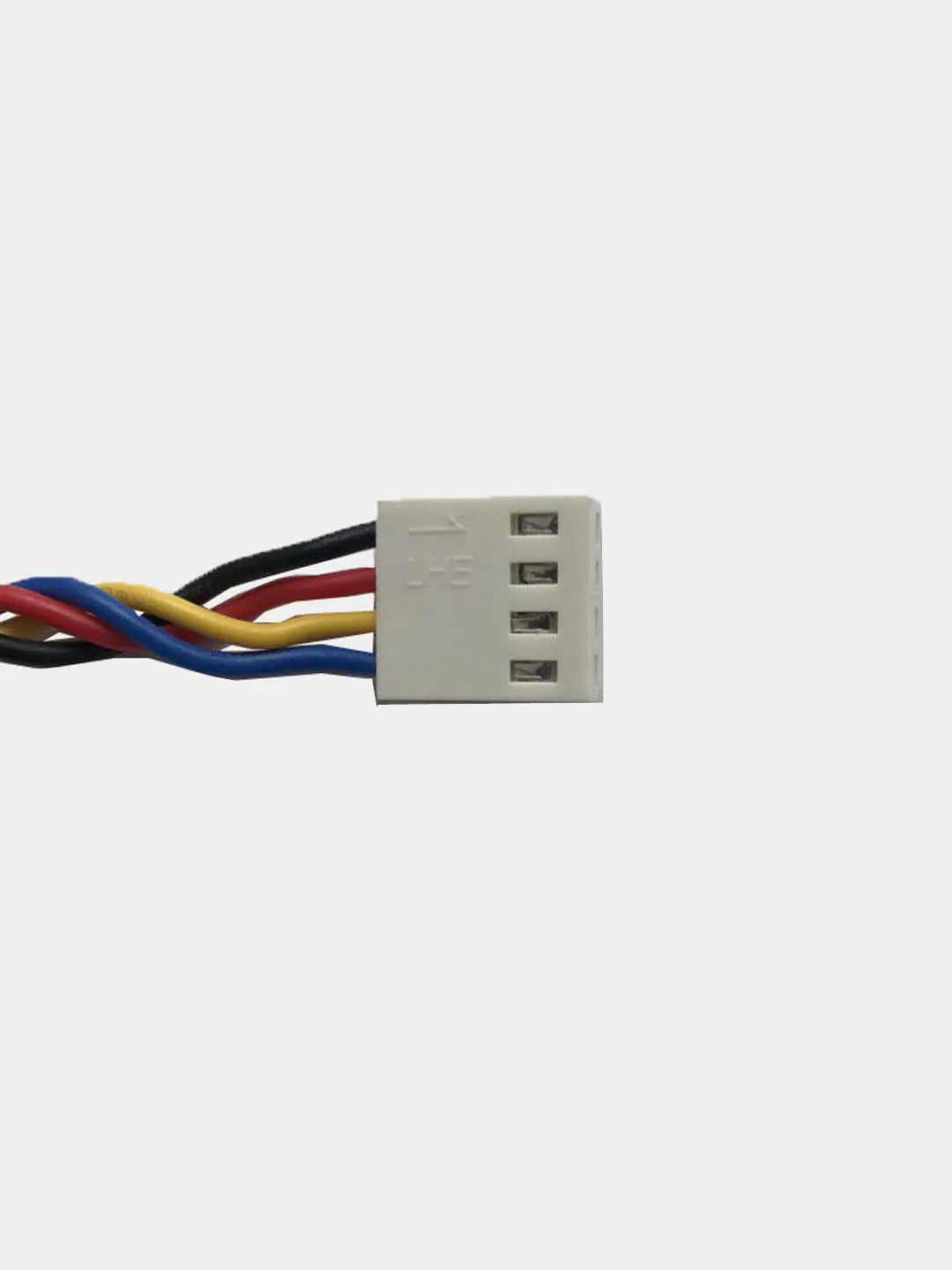

Connector: 4pin (Supports PWM)

Wire Length: 40cm

Size: 120mm x 120mm x 38mm

Voltage: DC 12V

Current: 3.14A

Air volume: 210.38CFM

Air pressure: 21.60 mmH2O

Noise: 64dB-A

Bearing: High precision double ball bearing

Fan frame: injection molding, PBT + 30% glass fiber + VO level flame retardant

Fan: injection molding, PBT + 30% glass fiber + VO level flame retardant.

Operating temperature: -10 degrees Celsius to +70 degrees Celsius

Storage temperature: -40 degrees Celsius to +70 degrees Celsius

Power range: rated power plus or minus 15%

Insulation resistance: greater than 500 megohms

Withstanding voltage: sink leakage current 0.5mA 500V / 1 minute
