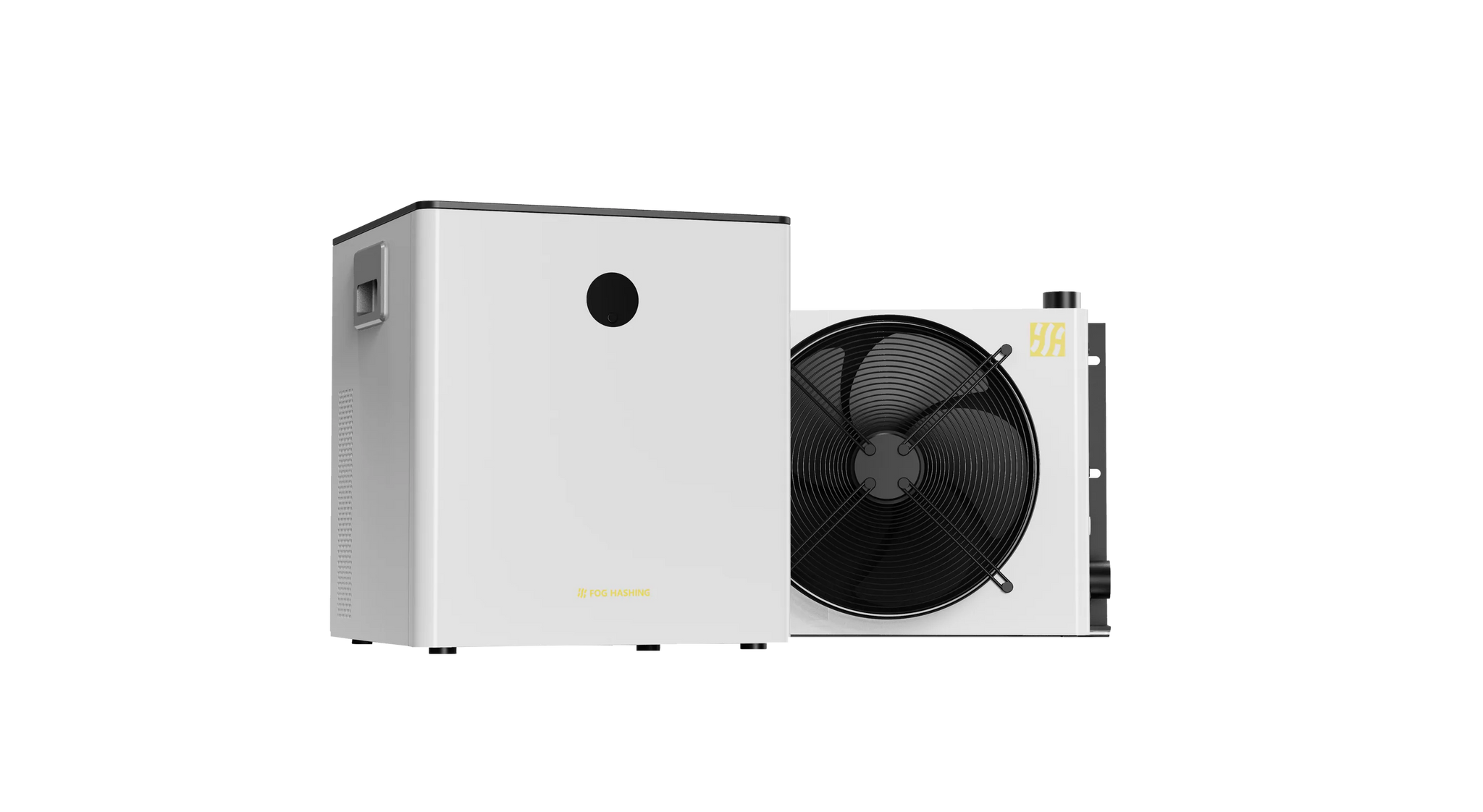

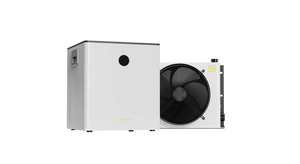

Fog Hashing C1 Immersion Cooling Kit
|
Chassis outer size |
440mm(L)*400mm(W)*475mm(H) |
| Coolant volume | 26-30L |
| Chassis inner size | 340mm(L)*210mm(W)*320mm(H) |
| Capacity | 1 Unit |
| Weight | 20kg |
| Supported miner models | Antminer all series WhatsMinerM3x/M2x,excluding M30S++, Avalon A1246/A1166 Innosilicon T2/ATV/A10 ete. |
| Input voltage | 200-240V 50/60Hz (Single phase) |
| Max cooling load | 4.5kW@30″°C |
| Display screen | 1.32 inches OLED Screen |
| Power Interface | 2x C14 |
| Dry cooler size | 570x310x530mm |
| Voltage | 220VAC |
| Hose Specifications | DN20 3/4″ |
| Hose size | Length 3m each |
| C1 Kit power usage |
<80W *Approximately equal to the total fan power of the miner in the air-cooled state. *Remove all fans when using liquid cooling. |
Electro Cool EC-110 Dielectric Coolant - 20L Drum
Synthetic Single-phase Liquid Dielectric Coolant for Pressure compensation. lubrication and power transfer in aquatic applications. Low aquatic toxicity and outstanding biodegradation.
Engineered for Single-phase, Liquid Immersion Cooling of Electronics
Servers, GPUs, FPGAs, ASIC and other semiconductors operate at increasingly high energy densities and in ever smaller packaging.
These factors, combined with increases in operational frequency and output power, make the effective removal of waste heat a key limiting factor in the design and efficiency of most electronics.
Single-phase, Liquid Immersion Cooling (SLIC) is the most effective way to manage, remove, and control waste heat for electronics.
Full immersion Cooling of electronics in Engineered Fluids Dielectric Coolants is simplest and most reliable way of ensuring that semiconductors and electronics remain at their optimum operating temperatures without the need to use fans, complex designs, and the limitations of air as a cooling medium.
The challenge of cooling with dielectric fluid immersion has been the lack of purpose engineered coolants that are easy to use and safe for the general user and environment.
This was further complicated by the need to ensure and warranty material compatibility with the immersed components and coolants while ensuring the operational health and safety of personnel, and eliminating any negative environmental impacts posed by the coolants manufacture and use.
Engineered Fluids' ElectroCool Dielectric Coolants effectively solve all these challenges. ElectroCool Dielectric Coolants are 98% biodegradable, non-toxic, non-halogenated, food grade and 100% ozone safe.
In addition, the use and manufacture of ElectroCool Dielectric Coolants release no toxic waste or vapors into the workplace or environment, making Engineered Fluids' ElectroCool coolants easy to transport, use and clean up.
Includes:

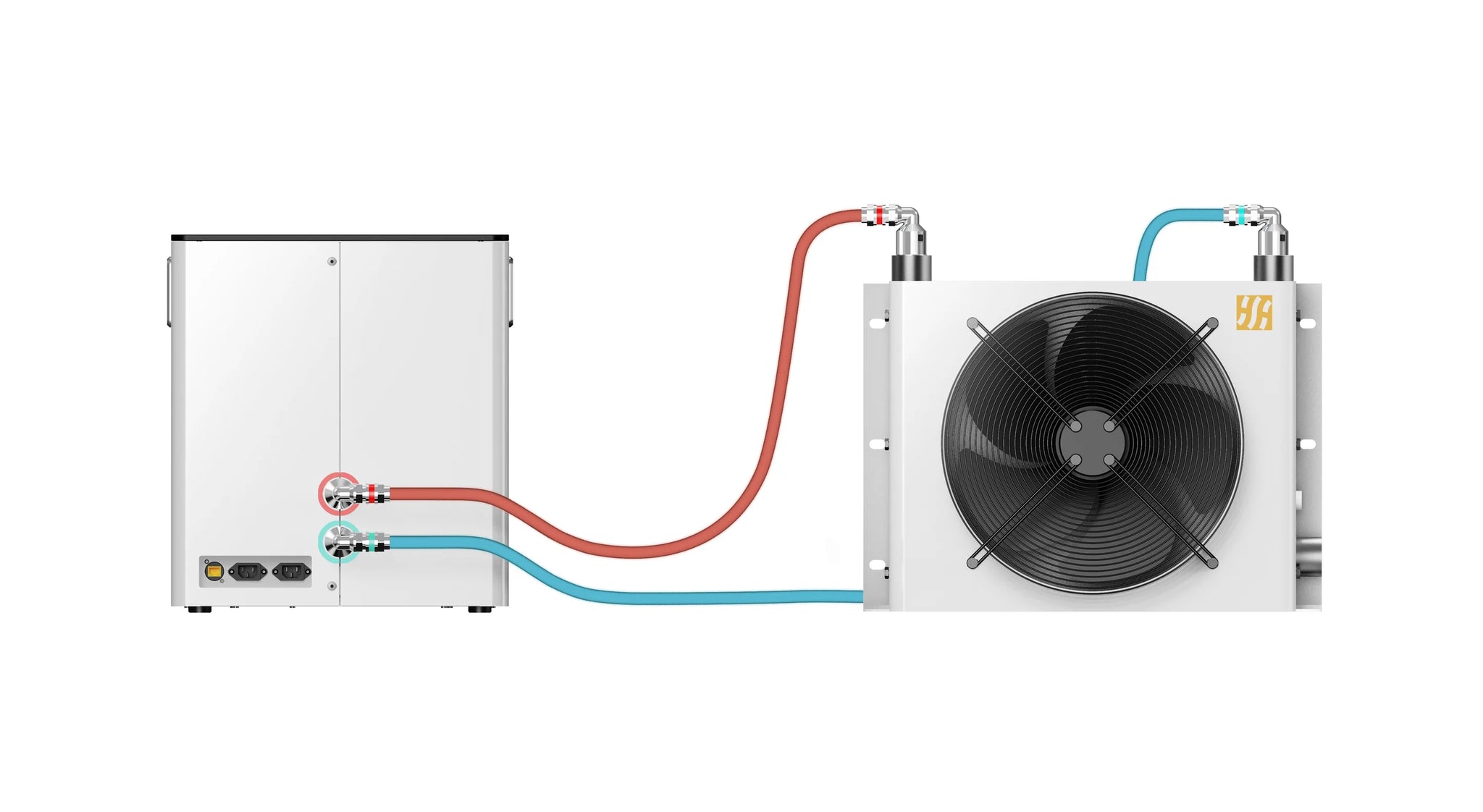

1x Fog Hash C1 Chasis
1x Fog Hash Dry Cooler
2x Interconnect Hose
2x 20L Electro Cool EC-110 Dielectric Coolant
