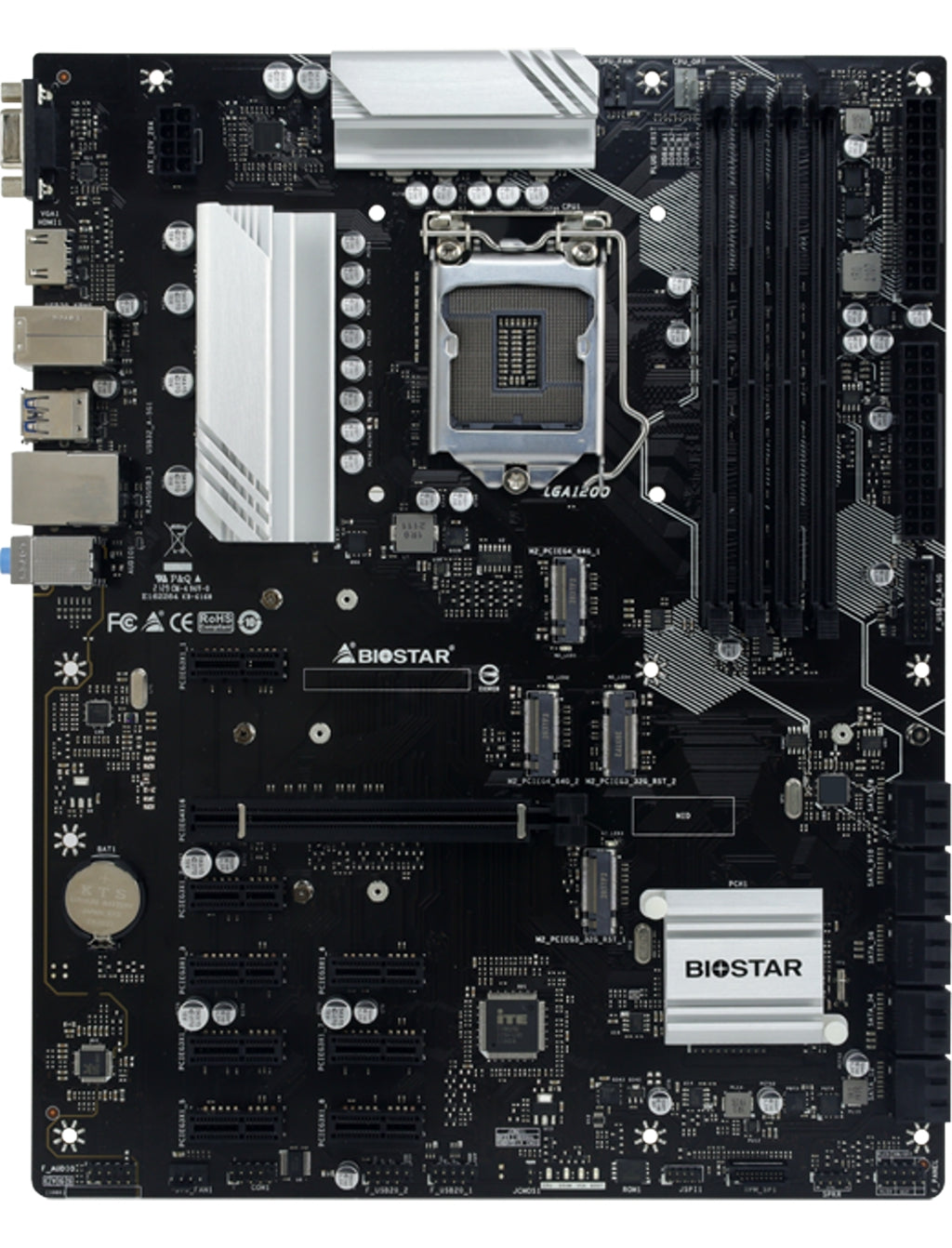

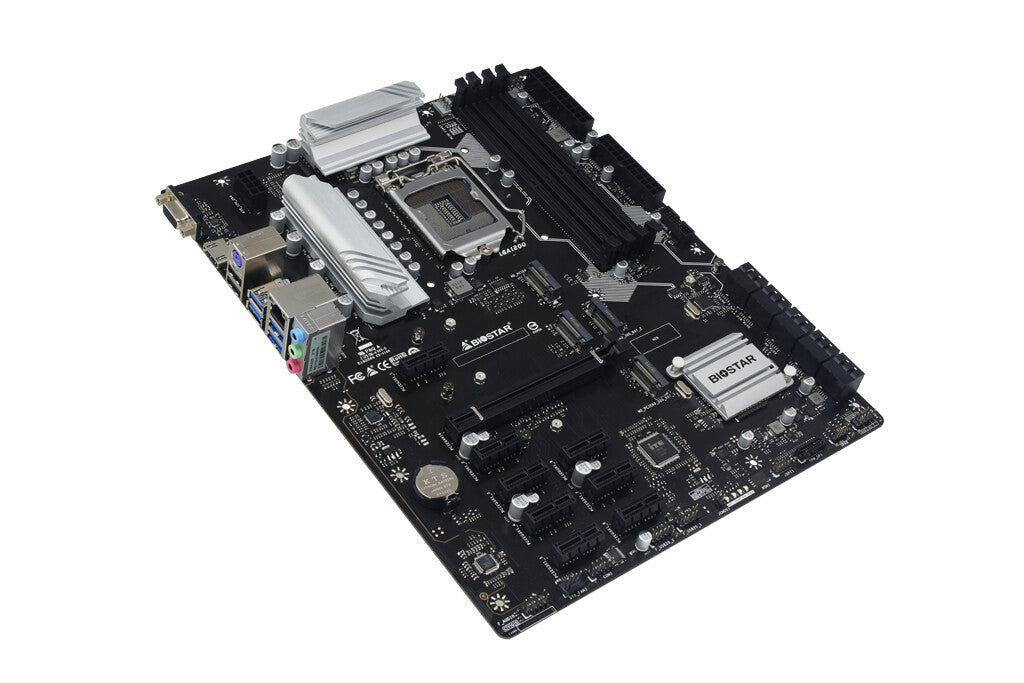

Biostar TZ590-BTC DUO Mining Motherboard
| Chipset | Intel Z590 |
| CPU SUPPORT | Support for 10th/ 11th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package |
| MEMORY | Supports Dual Channel DDR4 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory Each DIMM supports non-ECC 4/8/16/32GB DDR4 module Support Intel Extreme Memory Profile (XMP) memory modules |
| INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
| STORAGE | -- Total supports 4 x M.2 socket and 10x SATA III (6Gb/s) ports 10 x SATA III Connector (6Gb/s) 4 x M.2 (M Key) Socket: (M Key) Socket (M2_PCIEG4_64G_1) Supports PCIE Gen4 11th Generation Intel Core™ only Supports M.2 Type 2280 SSD module Supports PCI-e 4.0x 4 (64Gb/s)-NVMe/ AHCI SSD (M Key) Socket (M2_PCIEG4_64G_2) Supports PCIE Gen4 11th Generation Intel Core™ only Supports M.2 Type 2280 SSD module Supports PCI-e 4.0x 4 (64Gb/s)-NVMe/ AHCI SSD (M Key) Socket (M2_PCIEG3_32G_RST_1) Supports M.2 Type 2280 SSD module Supports PCI-e 3.0x 4 (32Gb/s) - NVMe/ AHCI SSD (M Key) Socket (M2_PCIEG3_32G_RST_2) Supports M.2 Type 2280 SSD module Supports PCI-e 3.0x 4 (32Gb/s) - NVMe/ AHCI SSD Supports Intel Rapid Storage Technology and Intel Optane Technology |
| LAN | Intel I219V 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| AUDIO CODEC | ALC887 7.1 Channels, High Definition Audio |
| USB | 6 x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal header) 6 x USB 2.0 ports (2 on rear I/Os and 4 via internal header) |
| EXPANSION SLOT | 8 x PCIe 3.0 x1 Slots 1 x PCIe 4.0 x16 Slot (x8 mode) (Supports PCIE Gen4 11th Generation Intel Core™ only) |

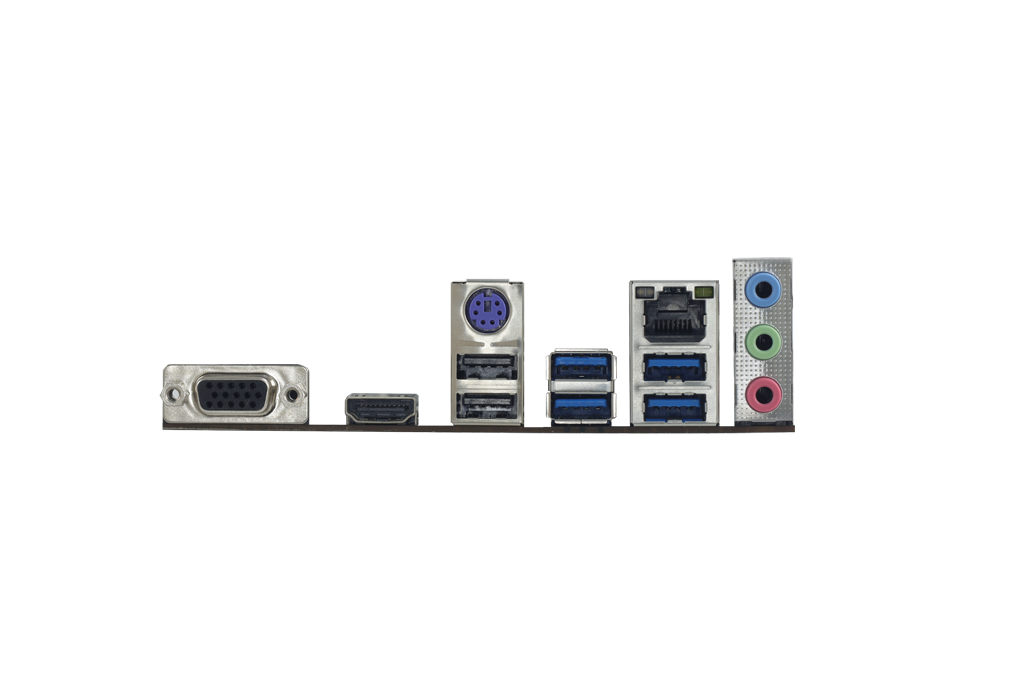

| REAR I/O | 1 x PS/2 Keyboard/Mouse Port 1 x HDMI Port 1 x VGA Port 4 x USB 3.2 (Gen1) Ports 2 x USB 2.0 Ports 1 x LAN port 3 x Audio Jack |
| INTERNAL I/O | 10 x SATA III Connectors (6Gb/s) 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports) 1x USB 3.2(Gen1) Header 1 x 8-Pin Power Connector 2 x 24-Pin Powers Connector 1 x CPU Fan Connector 1 x CPU water cooling connector (CPU_OPT) 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
| DIMENSION | ATX Form Factor Dimension: 30.5cm x 24.4cm ( W x L ) |
| OS SUPPORT | Supports Windows 10(64bit) / 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice. |
| BUNDLE SOFTWARE | BullGuard |

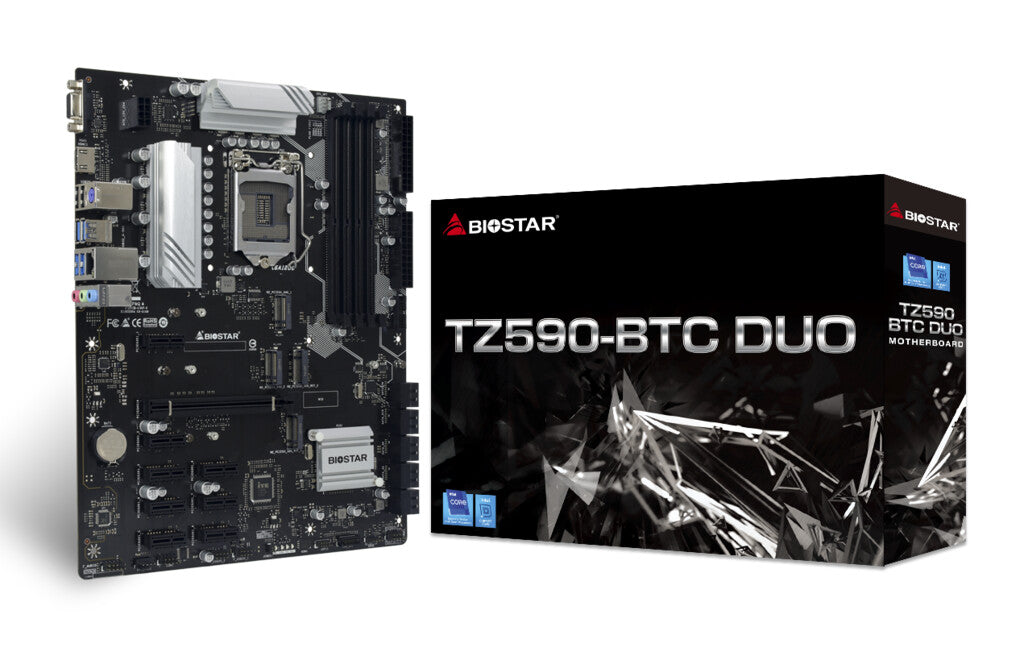

| ACCESSORIES | 10 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual |
| FEATURES | BIOS-Flasher A.I FAN PCI-E Slot Detection BIOS Boot Screen PCIe M.2 32Gb/s BIOSTAR Flash BIOS EZ Mode /Advanced Mode |
