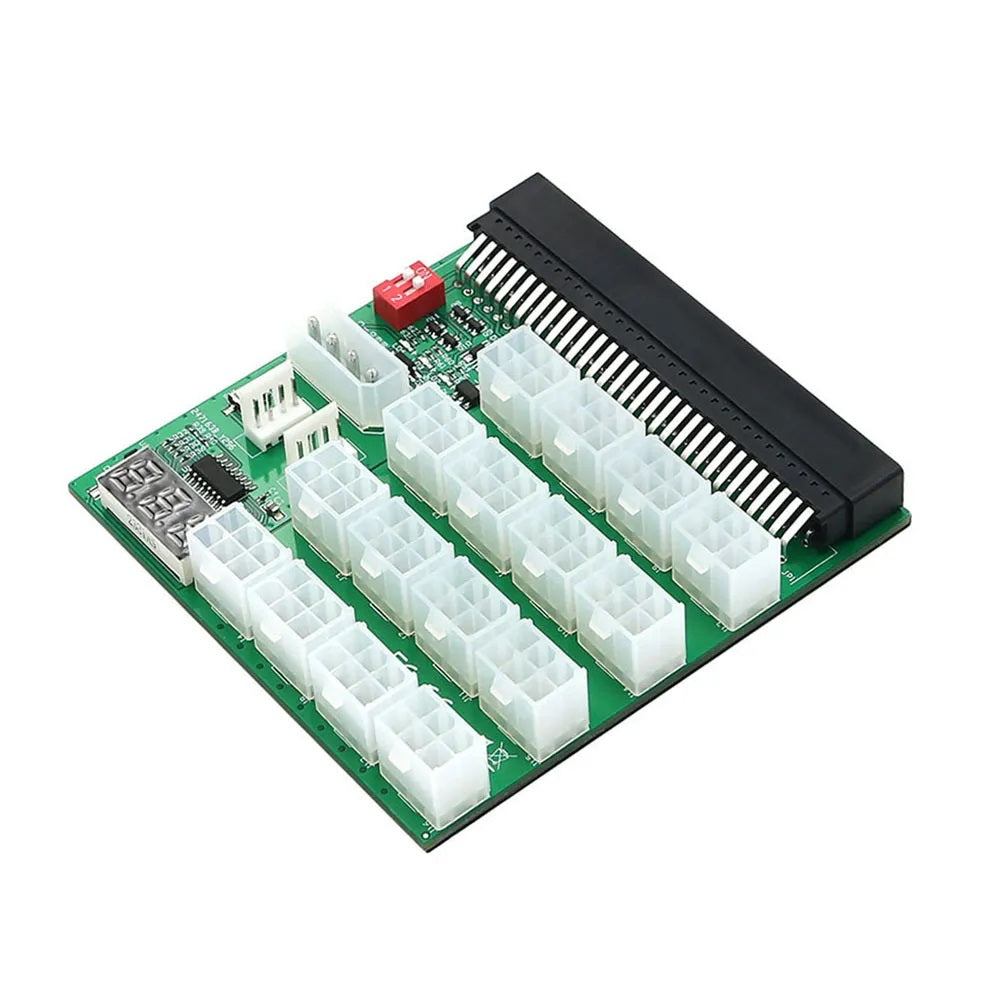

Server Power Supply Breakout Board ZYX64

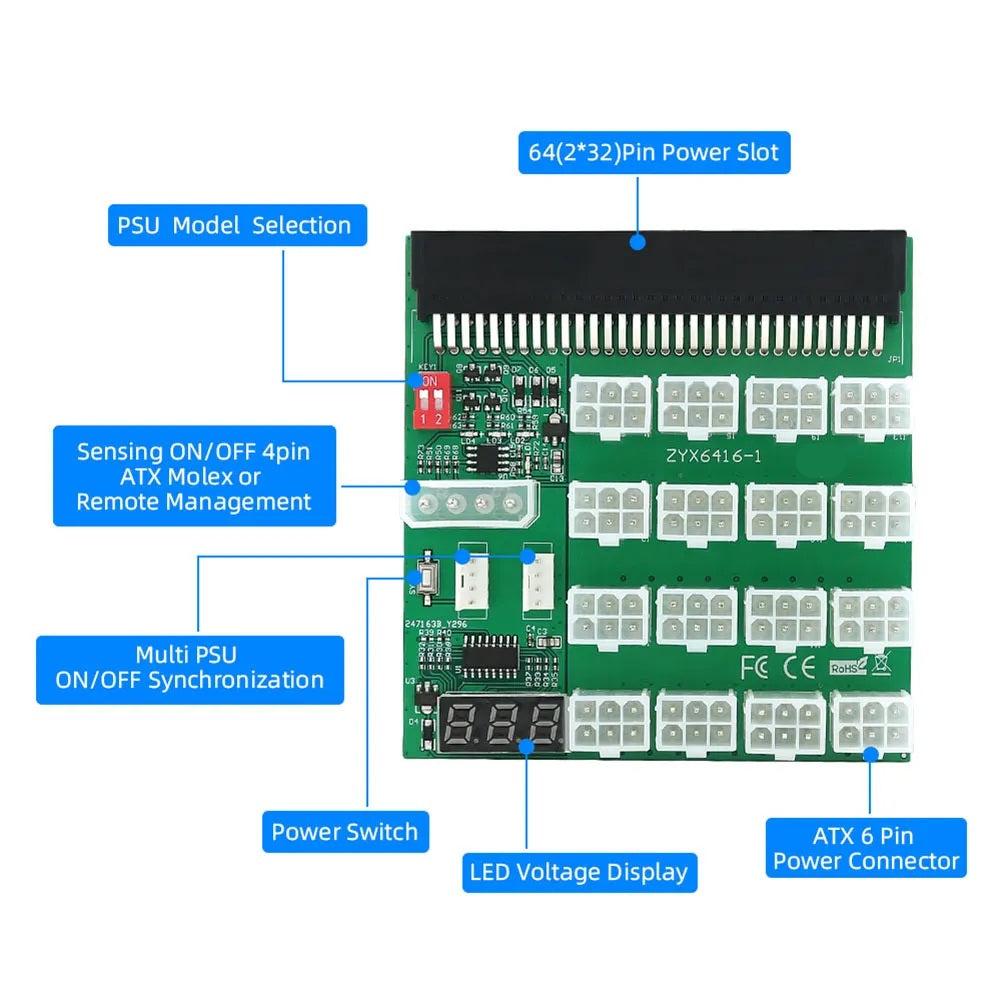

Features:

• Built-in 16x PCI-E connectors on board for quick and easy connection.
• Compatible with Dell/HP/Liteon/Fujitsu Power Supplies up to 2000Watts.
• Voltmeter LED Display.
• Support up to 16 PCI-e cables
• Power on/off switch.
• 4pin Molex port to connect from ATX PSU for synchronized power on

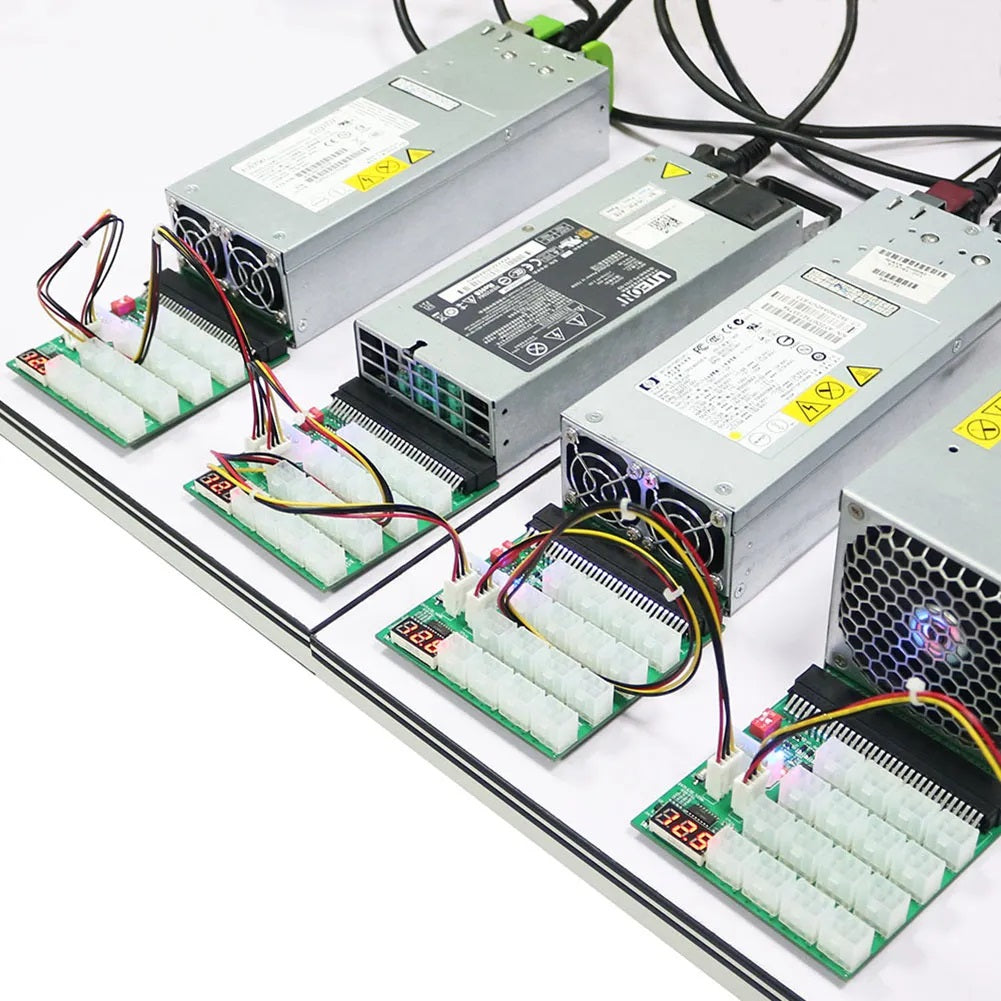

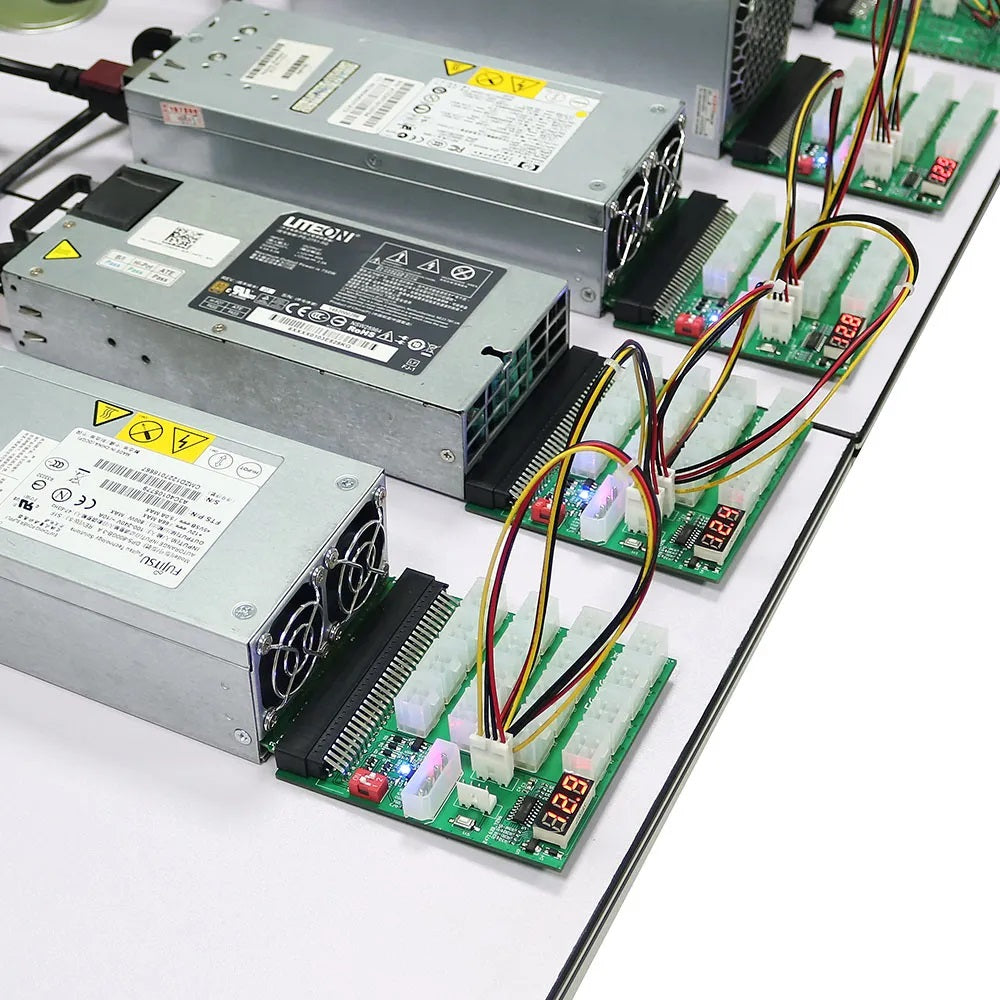

• Support multiple daisy chained PSUs starting/stopping at the same time with the 4 pin connect cable.

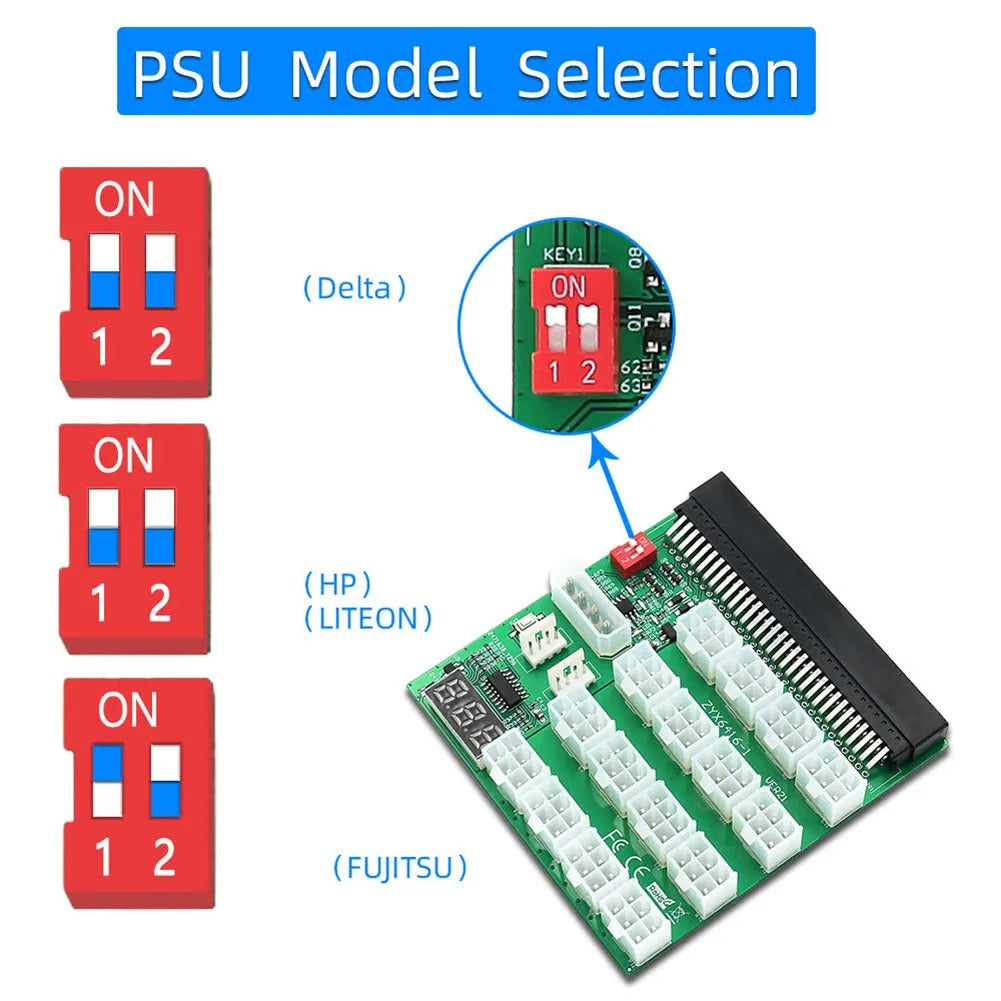

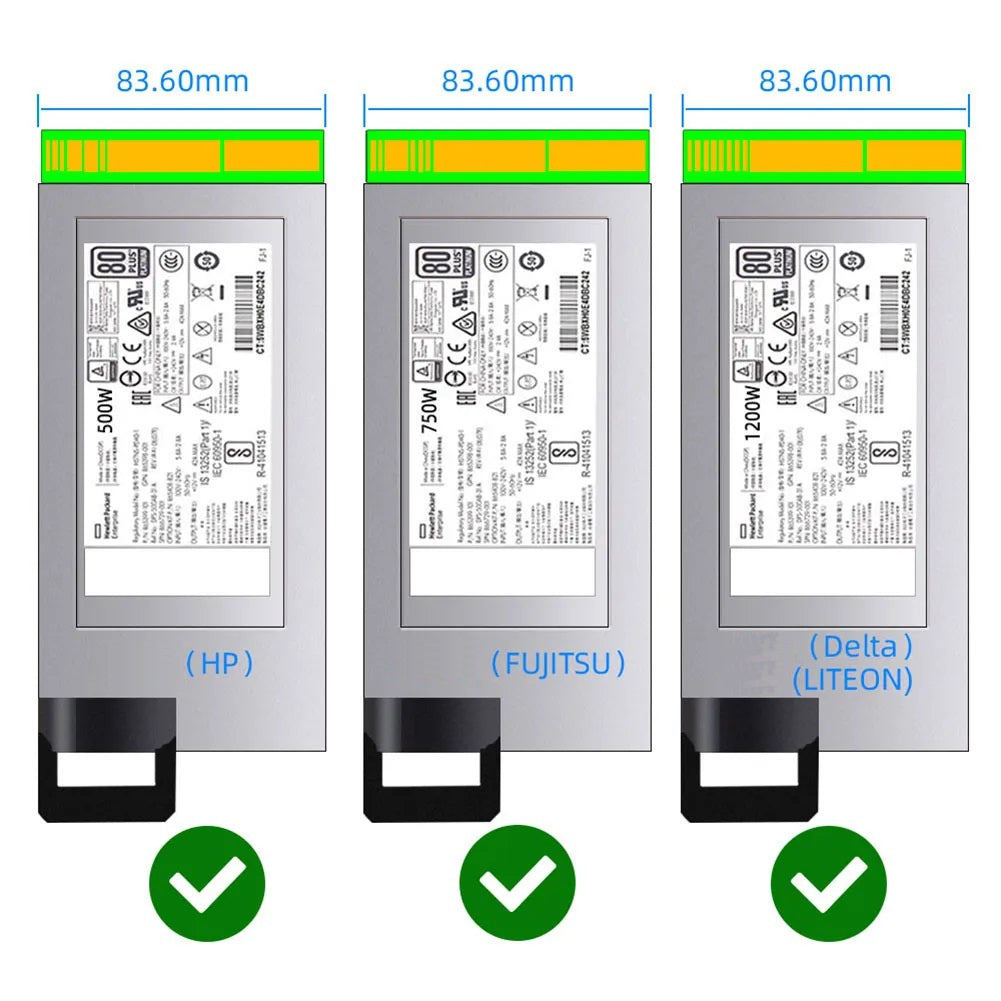

Supported "Common Slot" Power Supply Models:

• DPS-1200FB A
• DPS-1200QB A
• PS-2751-5Q
• PS-2751-LF-1F
• HSTNS-PL11
• HSTSN-PL12
• HSTNS-PL33
• DPS-700LB D
• PS-2112-5L
• DPS-750RB A
• DPS-800GB A
• DPS-800GB-5A
• DPS-800GB-3A

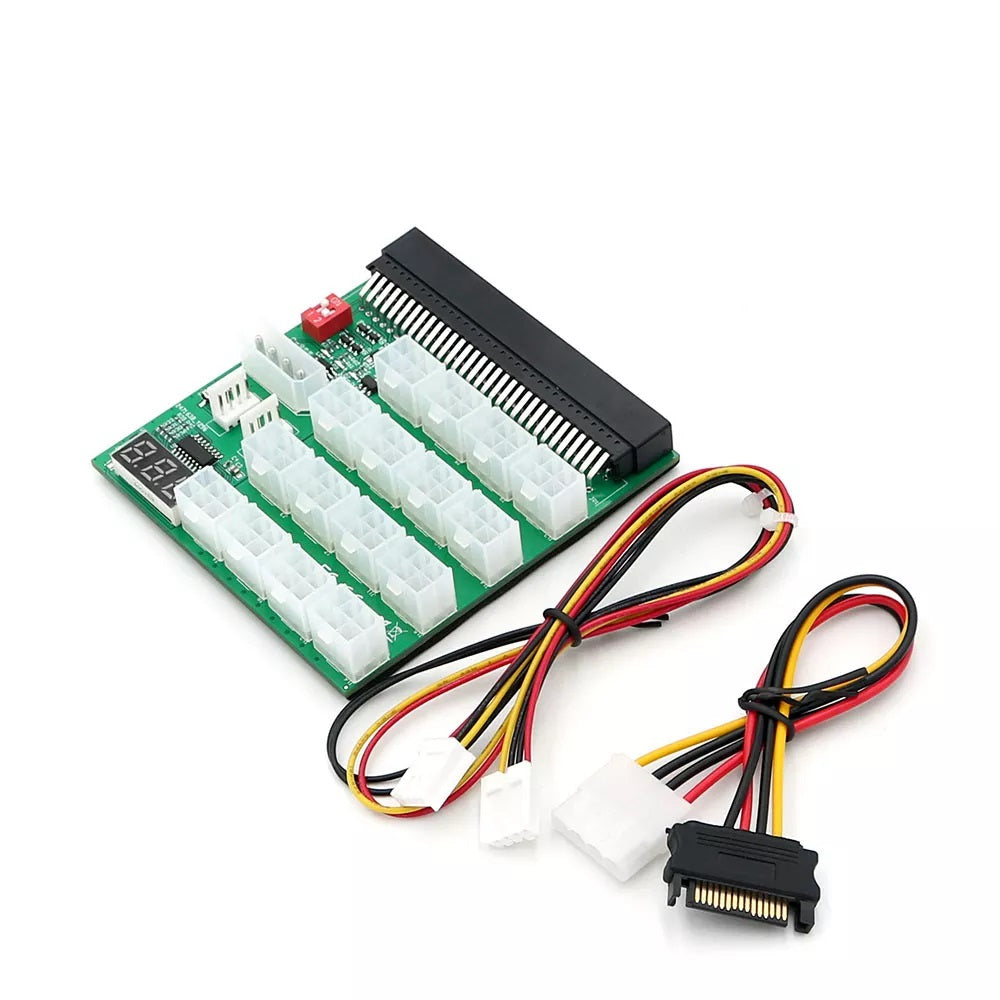

Package Includes:

1 x ZYX Breakout Board
1x 4Pin Interconnect Cable
1x SATA to Molex 4Pin Cable
1x Quick Installation Guide
